Self-contained edge-lit LED emergency exit sign (3W) with universal AC 95–265V input and a rechargeable Ni-Cd battery (1.2V 800mAh). Automatic changeover on mains failure with a minimum of 3 hours of emergency illumination. Bright green edge-lit acrylic panel with EXIT pictogram (directional / multilingual English + Arabic option, single or double face), aluminium housing, supplied with installation kit. CE / RoHS.

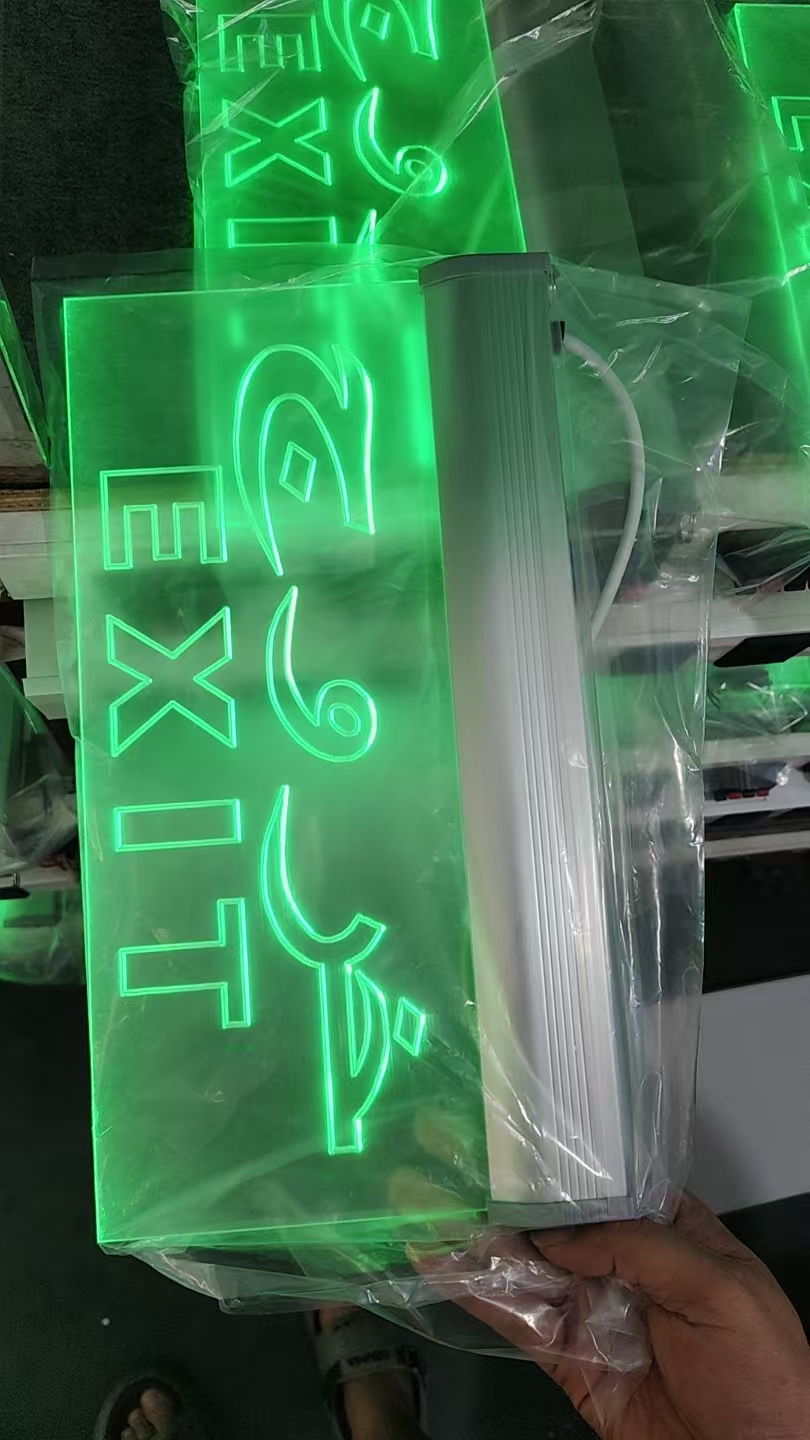

FT-2341 LED Edge-Lit Emergency Exit Sign 3W
描述
FT-2341 — LED Edge-Lit Emergency Exit Sign
The FT-2341 is a self-contained, edge-lit LED emergency exit sign for ceiling suspension or surface mounting. Under normal mains supply the unit trickle-charges its internal Ni-Cd battery; on mains failure it transfers automatically and illuminates the evacuation pictogram for at least 3 hours, guiding occupants safely to the nearest exit.
The bright green edge-lit acrylic guide panel displays the EXIT pictogram and can be supplied with directional arrows or a multilingual layout (English EXIT + Arabic available), single or double face. Housed in a durable aluminium body, it is a reliable, low-maintenance solution for corridors, stairwells, public buildings, shopping malls and industrial sites. CE / RoHS.
Features
- Self-contained edge-lit LED emergency exit sign for evacuation guidance.
- Universal AC 95–265V, 50/60Hz input.
- 3W light source with 8 high-brightness LEDs for even, high-visibility illumination.
- Rechargeable Ni-Cd battery 1.2V 800mAh; minimum 3 hours of emergency operation.
- Automatic changeover to battery on mains failure; trickle charging under normal supply.
- Bright green edge-lit acrylic panel; EXIT pictogram; directional / multilingual (English + Arabic) options.
- Durable aluminium housing; single or double face available.
- Compact size 360 × 200 mm; suspension or surface mounting.
- Packing: 10 pcs per carton.
- CE / RoHS.

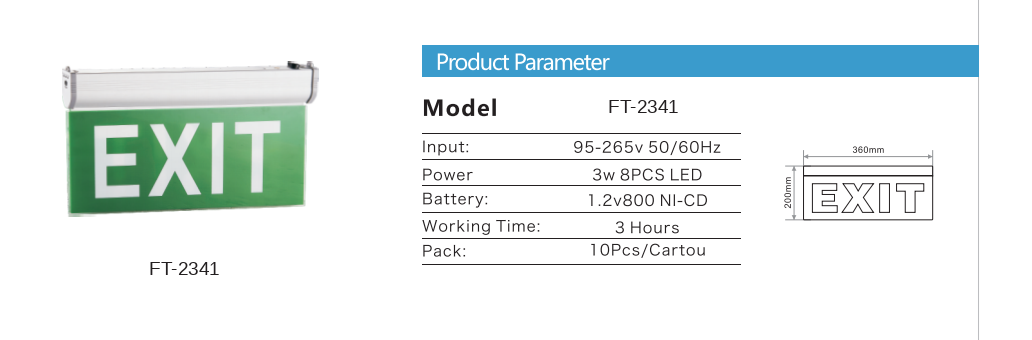

Specifications
| Model | FT-2341 |
|---|---|
| Product type | Edge-lit LED emergency exit sign |
| Emergency power | 3W |
| Light source | 8 × high-brightness LED |
| Input voltage | 95–265V AC |
| Input frequency | 50 / 60 Hz |
| Battery | Ni-Cd 1.2V 800mAh |
| Emergency time | 3 Hours (minimum) |
| Panel | Edge-lit acrylic (green), EXIT pictogram |
| Product size | 360 × 200 mm |
| Packing | 10 pcs / carton |
| Brand | Fuerten |
| Certifications | CE / RoHS |
其他信息
| Emergency Power | 3W |
|---|---|
| Input Voltage | 95–265V AC |
| Light Source | 8 × High-brightness LEDs |
| Battery | Ni-Cd 1.2V 800mAh |
| Emergency Time | 3 Hours |
| Product Size | 360 × 200 mm |
| Packing | 10 Pcs/Carton |
| Certifications | CE / RoHS |
