Self-contained LED emergency conversion kit (reduced output, 1–5W) for luminaires under 100W driven by an external isolated driver. Transfer < 1 s; emergency time 1H/1.5H/2H/3H or custom; Maintained / Non-maintained; battery options Ni-Cd / Ni-MH / Li-ion / LiFePO4. Built to EN/IEC 61347-2-7 & EN/IEC 60598-2-22; CE / CB / RoHS. Inquiry only — contact us for pricing.
FT-A405 LED Emergency Conversion Kit (Reduced Output) 1–5W
Price is available upon request.
Send Inquiry描述

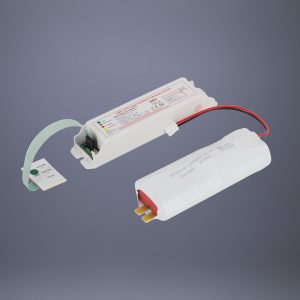

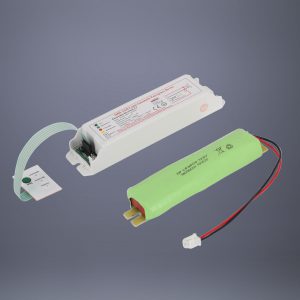

FT-A405 — LED Emergency Conversion Kit (Reduced Output)
The FT-A405 is a self-contained LED emergency conversion kit that turns a mains LED luminaire into an emergency luminaire. It suits high-power luminaires driven by an external high-power isolated driver. On mains failure it transfers in under one second and runs the luminaire at a reduced light output for the rated emergency duration — compact, fireproof and built for years of reliable standby service.
Can be wired for Maintained or Non-maintained operation. Designed to the requirements of EN/IEC 61347-2-7 (emergency converter) so the converted luminaire can readily meet EN/IEC 60598-2-22 (luminaires for emergency lighting).
Pricing is by inquiry only. Please submit an enquiry for a quotation and lead time.
Features
- Reduced-brightness (reduced output) emergency operation for high-power luminaires.
- For luminaires driven by an external high-power isolated driver.
- Wired for Maintained or Non-maintained operation.
- Non-constant-current emergency output.
- Waterproof standard: IP20.
- Built-in & external test switch with working indicator.
- Internal or external battery — Ni-Cd / Ni-MH / Li-ion / LiFePO4.
- Dust-, water- & explosion-proof box design; custom enclosure on request.
- Fireproof PC housing, easy to install.
- Warranty: power supply 3 years, battery 1 years.
Specifications
| Model | FT-A405 |
|---|---|
| Emergency power | 1–5W |
| Compatible light | < 100W |
| Output current | Max 0.35A |
| Output volt | DC12–100V |
| Battery type | Ni-Cd / Ni-MH / Li-ion / LiFePO4 |
| DC working volt | 3.6 / 3.7V |
| Overcharge prot. | 4.2±0.05V |
| Over-discharge prot. | 2.75±0.05V |
| Surge volt | 2000V |
| Charging power | 2.5W Max |
| Product size | 161×38×25 mm |
| Brand | Fuerten |
| Emergency time | 1H/1.5H/2H/3H / Custom |
| Input volt | 90–277Vdc |
| Power factor | > 0.5 |
| Input frequency | 50 / 60 Hz |
| Transfer time | < 1 s |
| Max case temp. | 120°C |
| Charging time | ≤ 24 h |
| Working temp. | -10 ~ 55°C |
| Charging mode | Trickle charge |
| Operation mode | Maintained / Non-maintained |
| Compliance | EN/IEC 61347-2-7 · EN/IEC 60598-2-22 |
| Certifications | CE / CB / RoHS |
其他信息
| 尺寸 | 16.1 × 3.8 × 2.5 厘米 |
|---|---|
| Emergency Power | 1–5W |
| Compatible Light | < 100W |
| Emergency Time | 1H / 1.5H / 2H / 3H / Custom |
| Battery Type | Ni-Cd / Ni-MH / Li-ion / LiFePO4 |
| Transfer Time | < 1 s |
| Operation Mode | Maintained / Non-maintained |
| Compliance | EN/IEC 61347-2-7, EN/IEC 60598-2-22 |
| Certifications | CE / CB / RoHS |
