FT-DP021 LED Edge-Lit Emergency Exit Sign 3W

描述

FT-DP021 — LED Edge-Lit Emergency Exit Sign

The FT-DP021 is a self-contained, edge-lit LED emergency exit sign for ceiling suspension or surface mounting. Under normal mains supply the unit trickle-charges its internal battery; on mains failure it transfers automatically in under 0.25 s and illuminates the evacuation pictogram for the rated emergency duration — guiding occupants safely to the nearest exit.

It can be wired for Maintained or Non-maintained operation, with a selectable Li-ion or Ni-Cd battery. The acrylic light-guide panel is fully customizable — standard EXIT, transparent, directional (left / right / up / down), multilingual, single or double face. Designed to the requirements of EN/IEC 60598-2-22 (luminaires for emergency lighting); CE / RoHS.

EXW unit price: US$ 9.30. Each unit is supplied complete with its installation / mounting kit (chain-suspension hardware standard; pole-flange and spring-clip options available on request).

Features

• Self-contained edge-lit LED emergency exit sign for evacuation guidance.
• Universal AC 90–277V, 50/60Hz input; automatic changeover < 0.25 s on mains failure.
• Selectable battery: Li-ion 3.6V/1200mAh or Ni-Cd 3.6V/800mAh.
• Emergency time 1.5H / 2H / 3H or custom; recharge ≤ 24 h.
• Maintained or Non-maintained operation; trickle charging.
• Fully customizable panel: standard EXIT, transparent, directional, multilingual; single or double face.

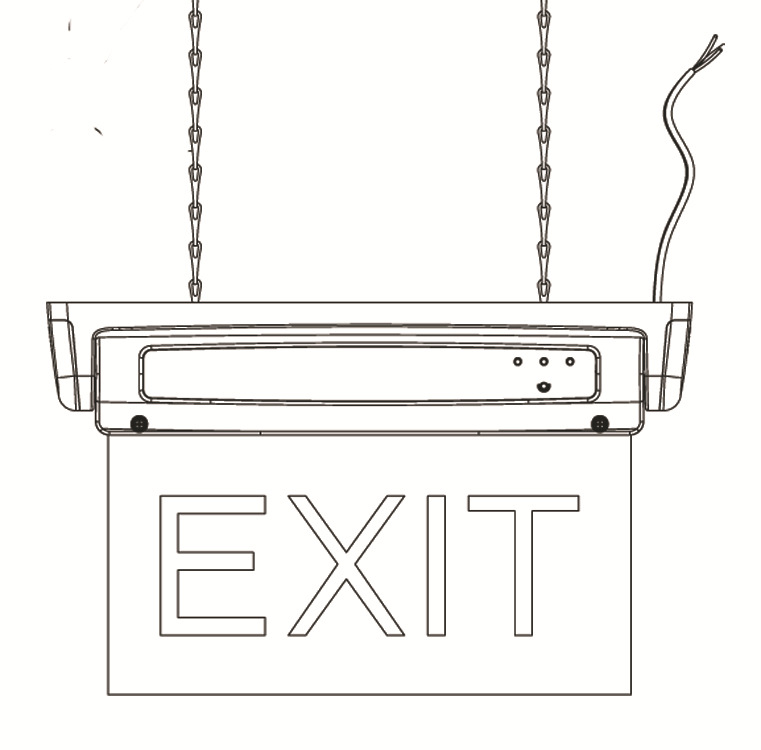

• Three mounting options: chain suspension, pole / flange, and spring-clip recessed.
• On-board charge / fault indicators and TEST self-test button.
• Slide-open “OPEN” end cover for tool-free battery service.
• Flame-retardant PC / ABS housing; acrylic (PMMA) edge-lit light guide; IP20.
• Each unit supplied complete with its installation / mounting kit.
• Warranty: 2-year luminaire / 1-year battery.
